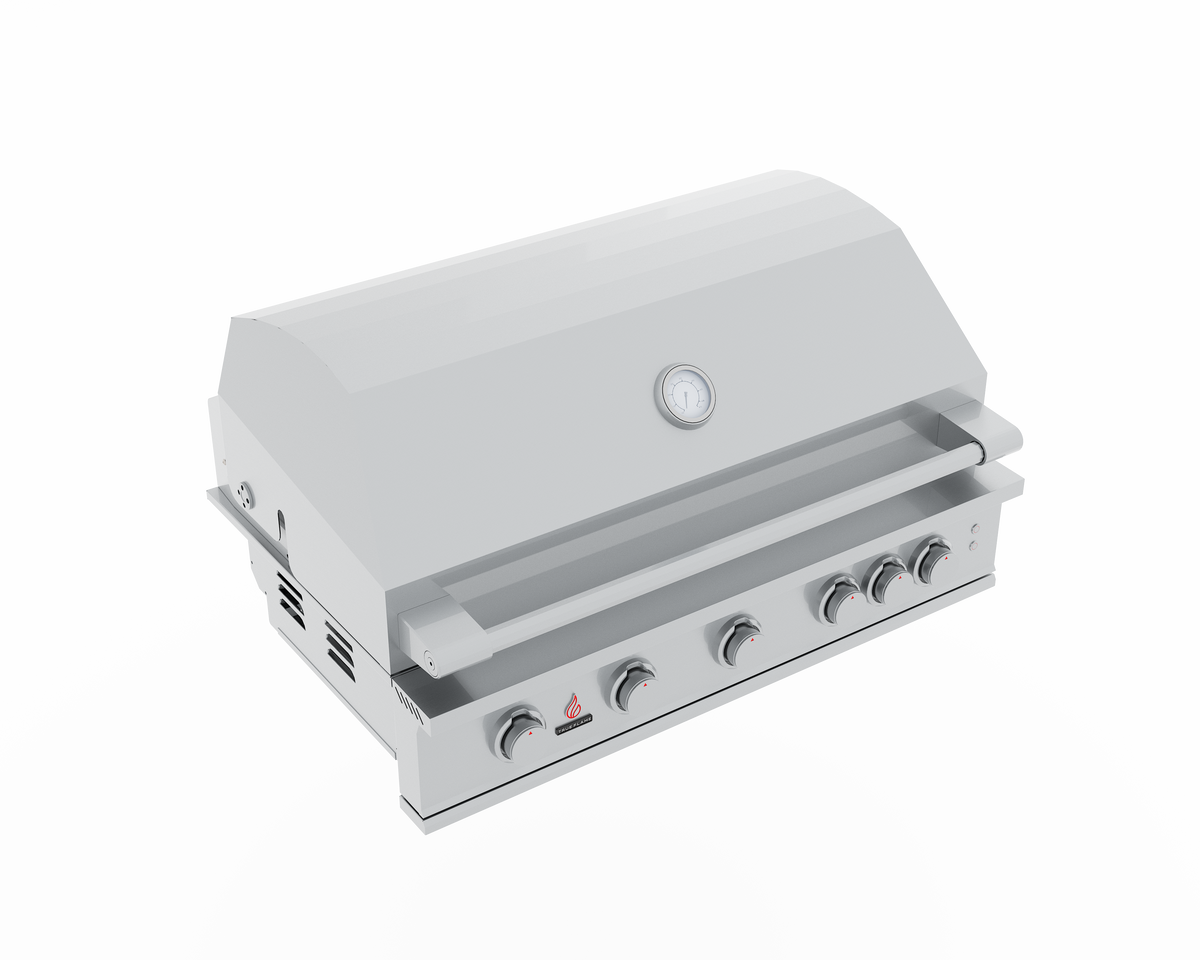

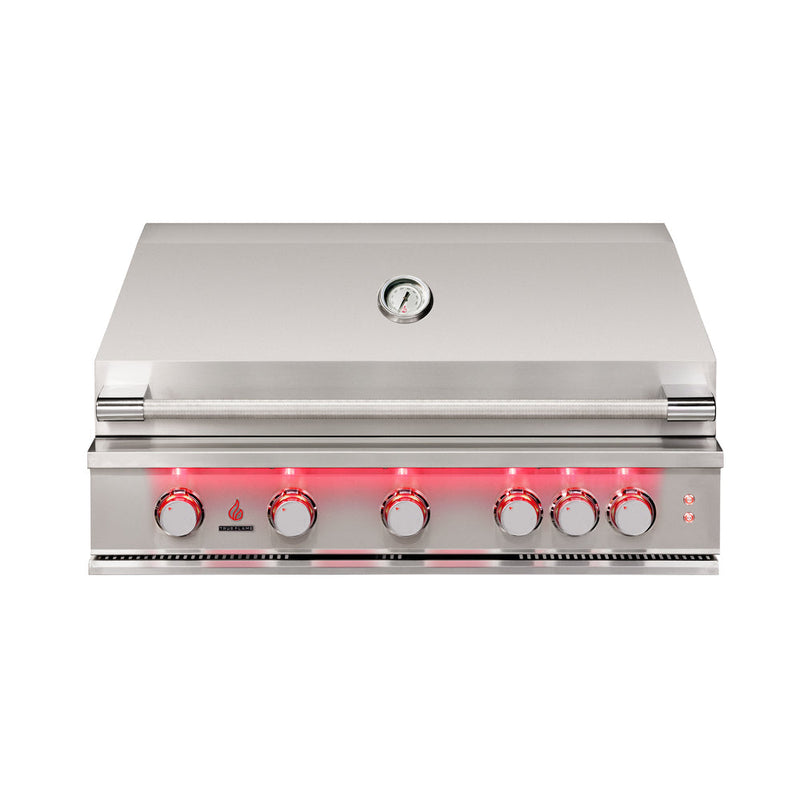

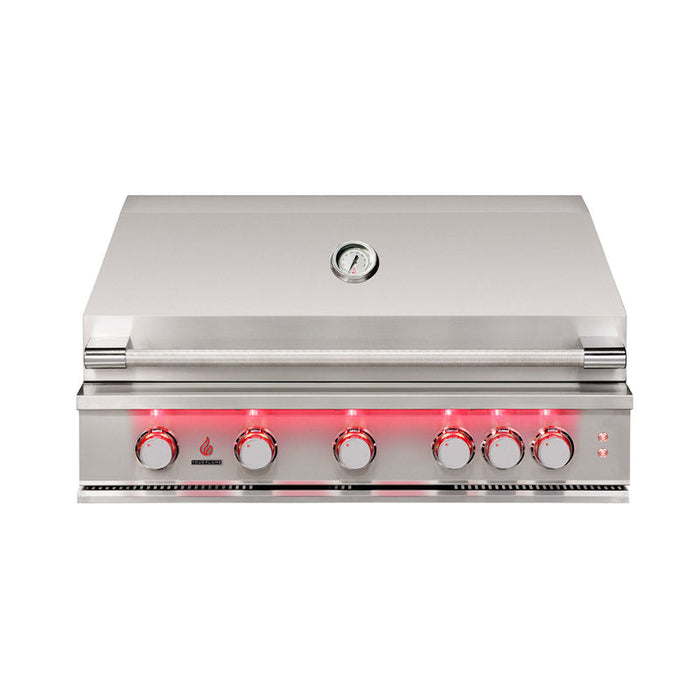

TrueFlame TF Series 40 Inch 5 Burner Gas Grill - TF40

SKU:TF40

$3,499.00

~~$4,548.70~~ $3,499.00

Sale Sold out

Shipping calculated at checkout.

Call for current availability — distributor inventory changes daily.

Freestanding Cart Configuration

Matching cart: CART-TF-40DC

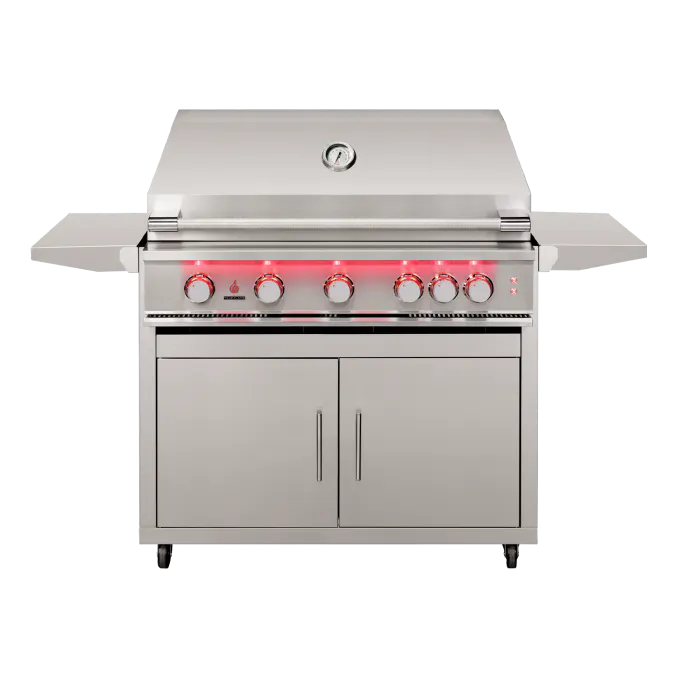

TrueFlame freestanding grill cart configuration reference

Official TrueFlame freestanding configuration shown for reference. Grill width and series vary by selected model.

WHY SHOP TXOPC Outdoor-kitchen product help before you buy.

Local Pickup Dallas–Fort Worth area

Fitment Help Cutout & replacement guidance

Factory Documents Specs, cutouts & warranty PDFs

Call to Confirm Current availability before purchase

TrueFlame · Gas Grill SKU: TF40

View full details

TrueFlame

Product Overview

Review the product details, available configurations, specifications and fit information below. For replacement projects, verify the manufacturer cutout and utility requirements before ordering.

The TrueFlame TF40 is the flagship 40-inch TF Series gas grill, configurable for a built-in outdoor kitchen or the matching TrueFlame deluxe cart. Choose fuel, fitted cover, and cart from one product page and the selected configuration updates the package price.

Core grill features

#304 stainless steel construction
Five 14,000 BTU #304 cast stainless steel main burners
70,000 BTU main burner output
10,000 BTU infrared rear burner
892 sq. in. cooking surface

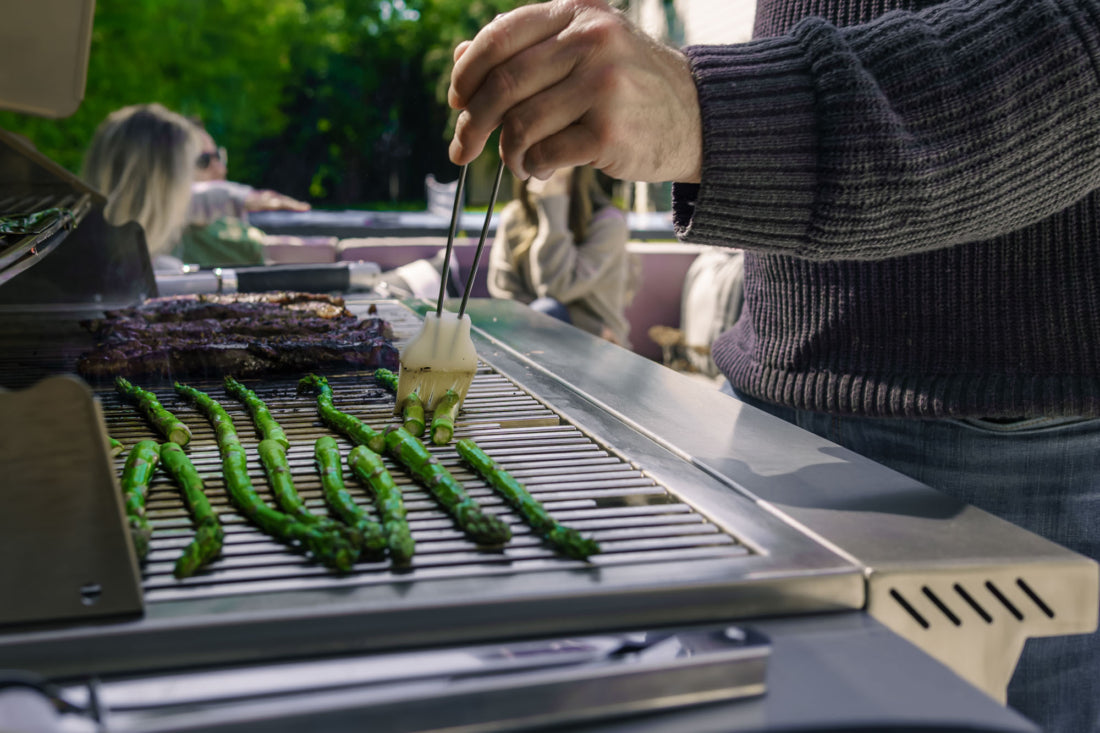

Square stainless steel cooking grates

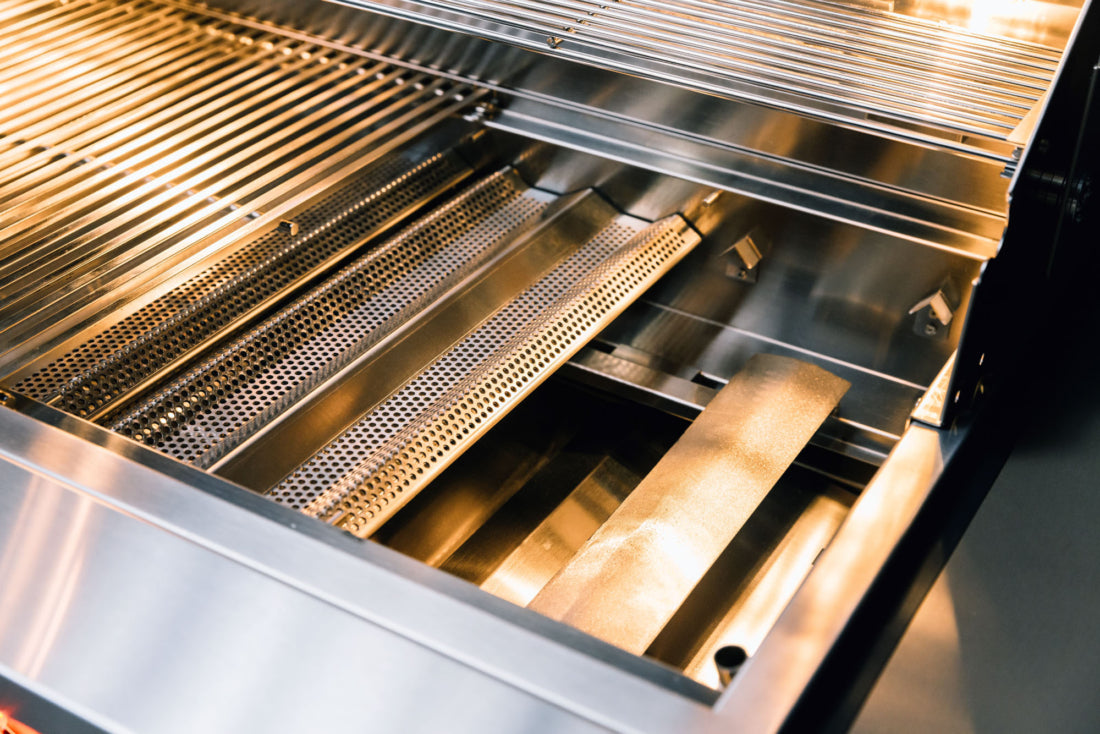

#304 stainless flame tamers and heat-zone separators

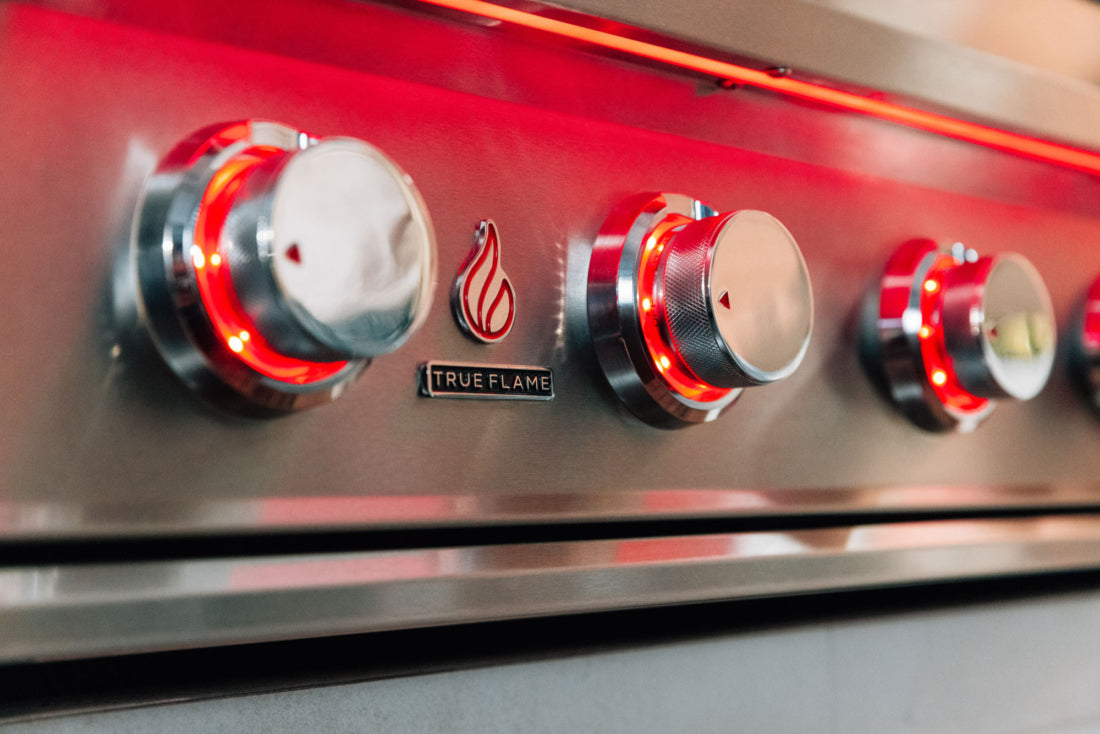

Full-length exterior LED bar and illuminated controls

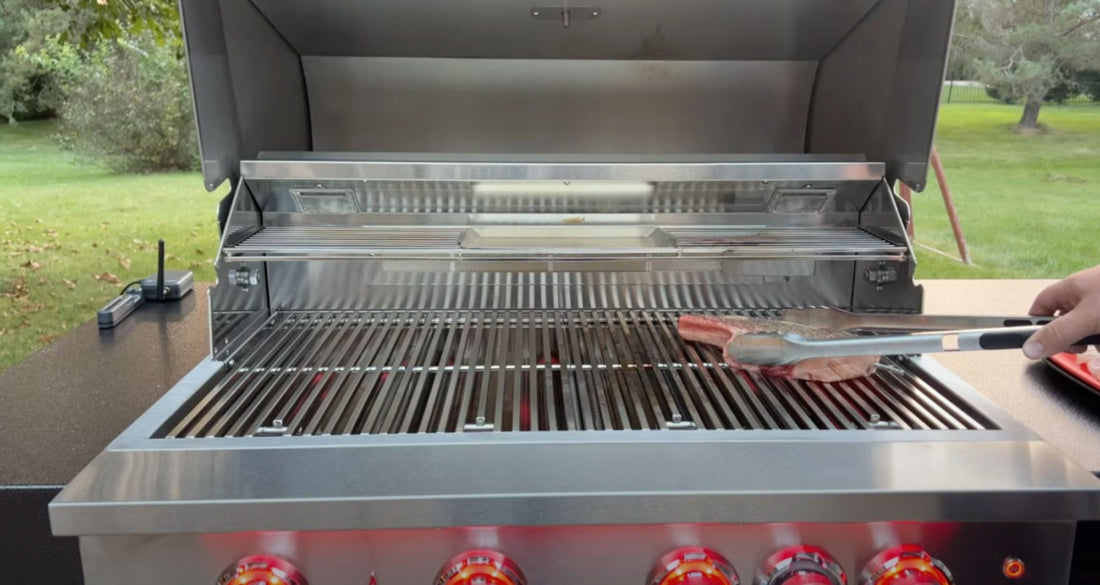

Halogen interior lighting
Balanced multi-position hood hinge
Warming rack with removable inset tray
Piezo ignition with manual flash-tube backup
ETL certified

Built-in cutout: 38-1/4" W x 8-1/4" H x 20-3/4" D.

Configuration: TF40 is natural gas and TF40L is Propane. Cover-only configurations use TFGC-40. Cart + cover configurations use CARTCOV-TF40. Optional cart: CART-TF-40DC.

Specifications & Dimensions

Manufacturer specifications for product comparison and fit planning. Confirm the current installation manual, required clearances and utility requirements before fabrication or replacement.

Specifications

Fuel Type	Natural Gas or Propane
Series	TrueFlame TF
Configuration	Built-In or Optional Cart
Construction	#304 Stainless Steel
Main Burners	5 Cast #304 Stainless Steel Burners
Main Burner Output	70,000 BTU
Rear Infrared Burner	10,000 BTU
Cooking Area	892 sq. in.
Cooking Grates	Square Stainless Steel
Ignition	Piezo with manual flash-tube backup
Heat-Zone Separators	Yes
Grill Lights	Interior / Exterior LED
Rotisserie Kit	Optional

Dimensions / Fit

Overall Width	39 3/4 in.
Overall Depth	25 1/2 in.
Overall Height	21 3/4 in.
Cutout Width	38 1/4 in.
Cutout Depth	20 3/4 in.
Cutout Height	8 1/4 in.

Warranty Information
View TrueFlame Warranty — Coverage varies by product and application.
