Product Overview
Review the product details, available configurations, specifications and fit information below. For replacement projects, verify the manufacturer cutout and utility requirements before ordering.

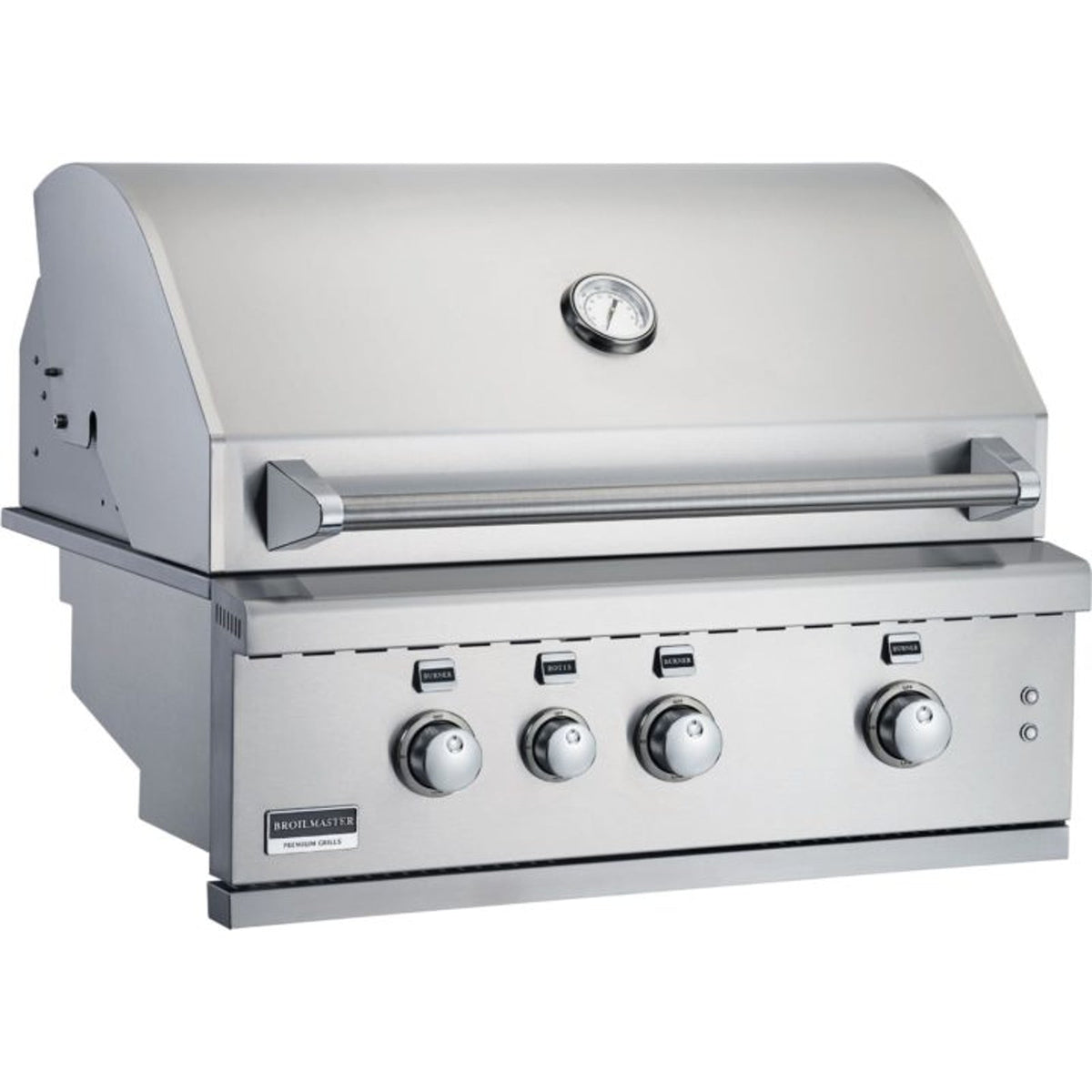

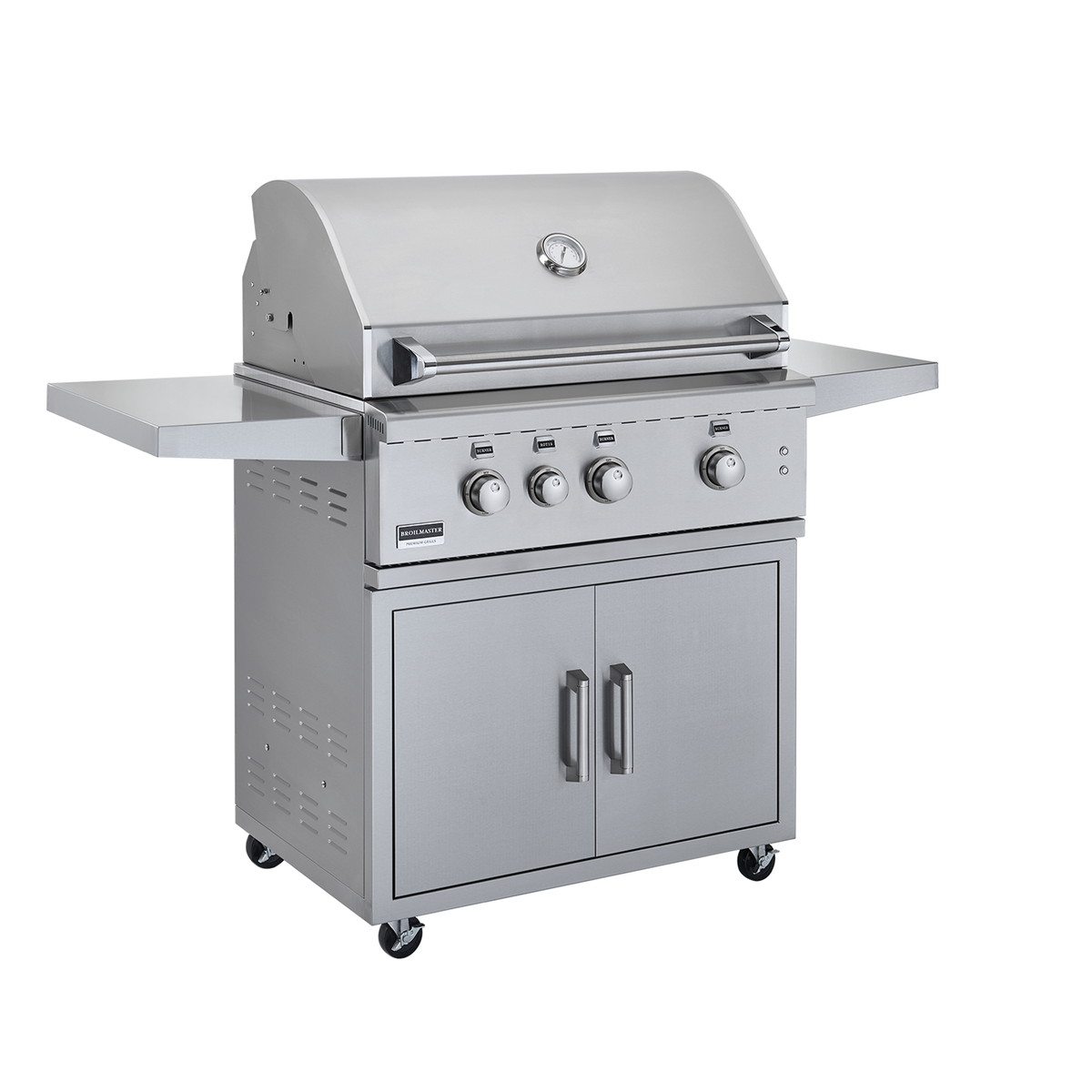

Broilmaster G-Series Elite 34 Inch Gas Grill is configured on one product page. Choose natural gas or propane, then select a built-in installation or the matching Broilmaster freestanding cart. G-Series models can also be configured with the compatible BSAVR infrared sear burner. Pricing and SKU update with the selected configuration.
Broilmaster BSG343 Features
- 304 stainless steel construction
- Three 18,000 BTU Bow Tie burners
- 690 sq. in. primary grill area; up to 806 sq. in. total cooking area
- 11,000 BTU rear infrared rotisserie burner
- Double-lined easy-open lid and Retract-A-Rack warming system
- Multi-level cooking grids and heat-zone dividers
- Flare-control vaporizer and easy-slide drip tray
- Flame-thrower ignition, interior cooking lights and illuminated controls
34-Inch Built-In Grill Replacement
The BSG343 is a strong mid-size replacement candidate for many outdoor kitchens, but nominal grill width is only a starting point. Existing cutout dimensions, depth, flange coverage, support and fuel connection still need to be checked against Broilmaster's current specifications before purchase.
For an existing island, start with our built-in grill replacement service, cutout dimensions guide, or measuring guide.
Broilmaster Outdoor Kitchen Options
The BSG343 can be coordinated with Broilmaster doors, drawers, side burners, power burners and grilling accessories. A matching stainless cart is also available when a freestanding setup makes more sense than a built-in island.
Browse all Broilmaster equipment or compare side and power burners.
DFW Availability & Local Pickup
Contact Texas Outdoor Patio Center for current BSG343 availability, local pickup and help matching the grill to a new or existing outdoor kitchen.
Broilmaster BSG343 Resources
Brochure | Specification Sheet | Owner's Manual | Quick Start Guide
Specifications & Dimensions
Manufacturer specifications for product comparison and fit planning. Confirm the current installation manual, required clearances and utility requirements before fabrication or replacement.
Specifications
| Fuel Type | Natural Gas or Propane |
| Series | Broilmaster G-Series Elite |
| Configuration | Built-In or Freestanding Cart |
| Construction | 304 Stainless Steel |
| Main Burners | 3 Cast Stainless Bow Tie Burners |
| Main Burner Output | 54,000 BTU |
| Rear Infrared Burner | 11,000 BTU |
| Primary Cooking Area | 690 sq. in. |
| Total Cooking Area | 806 sq. in. |
| Ignition | Flame-thrower |
| Heat-Zone Separators | Yes |
| Grill Lights | Interior / Illuminated Controls |
Dimensions / Fit
| Nominal Grill Width | 34 in. |
| Cutout Width | 31 1/2 in. |
| Cutout Depth | 21 in. |
| Cutout Height | 11 3/4 in. |
Product Documents
